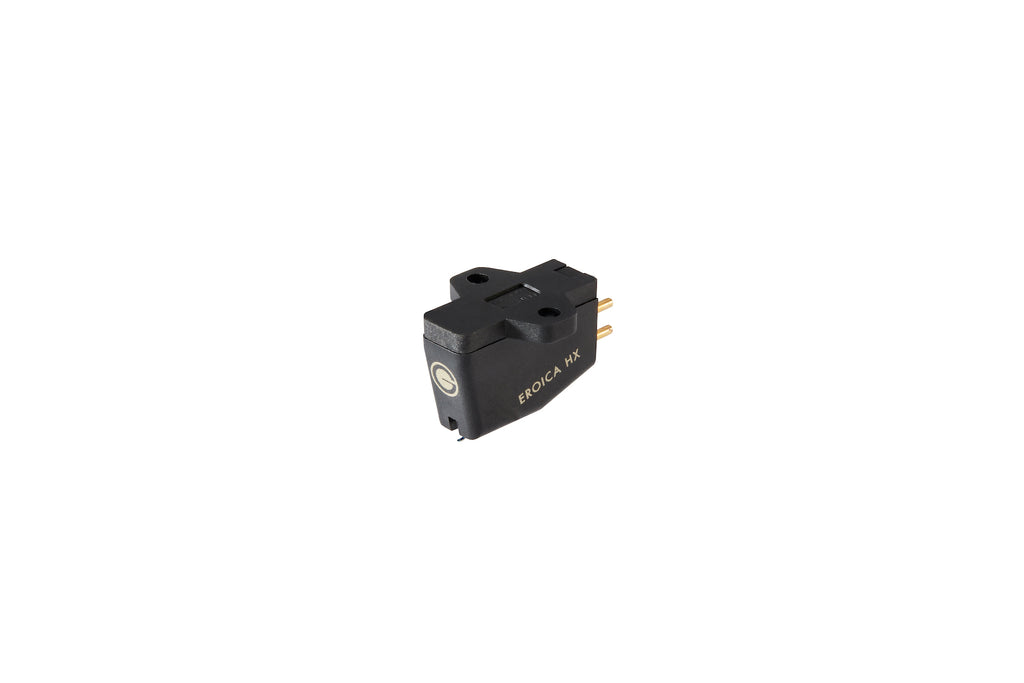

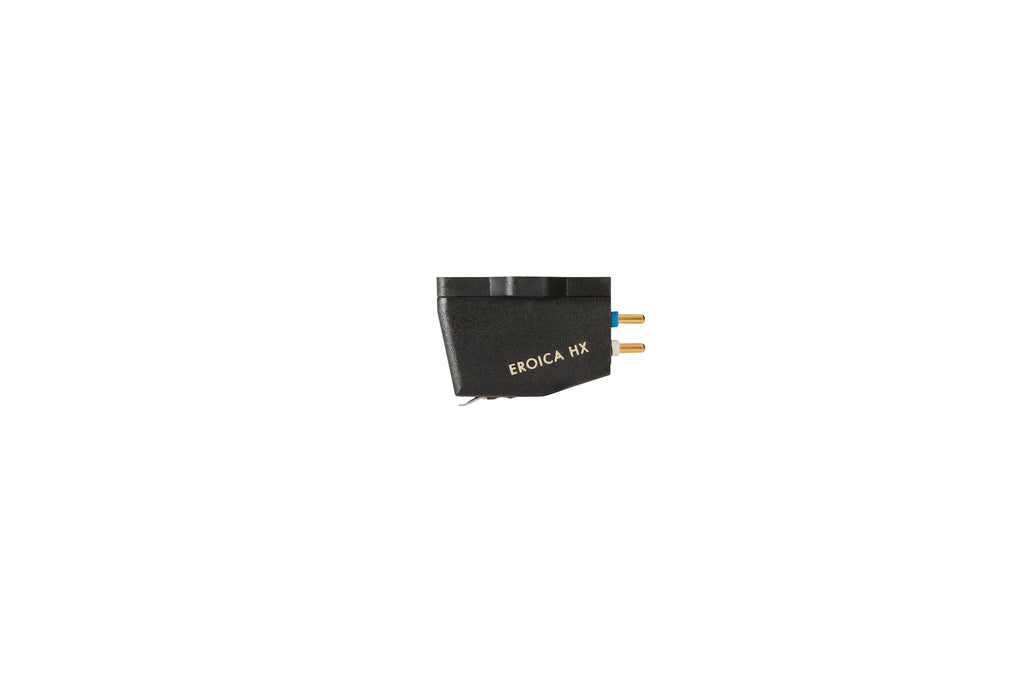

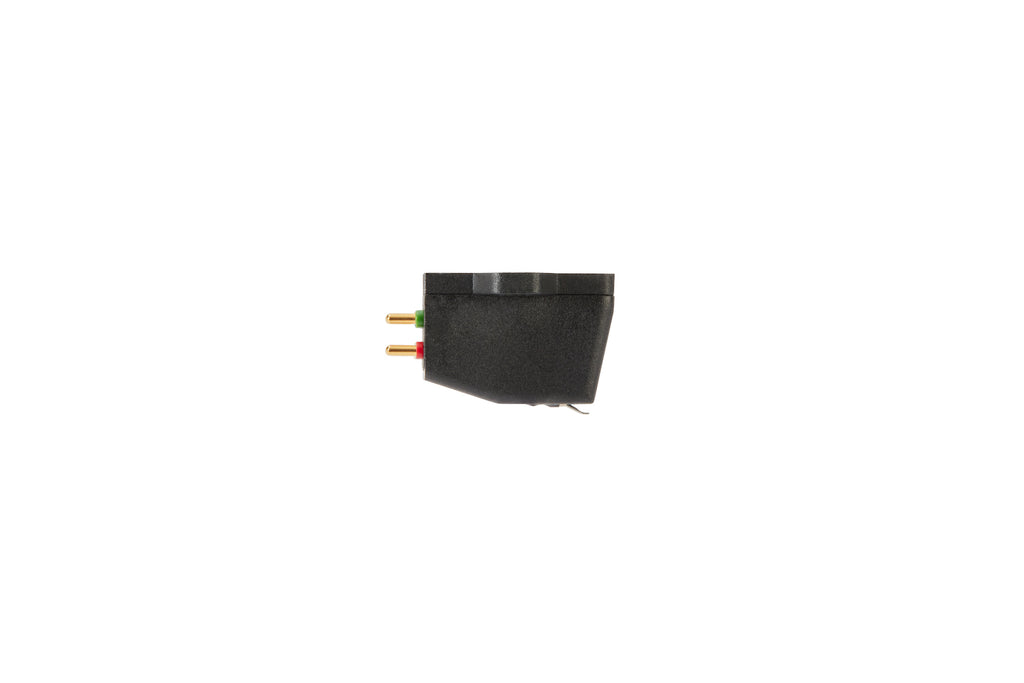

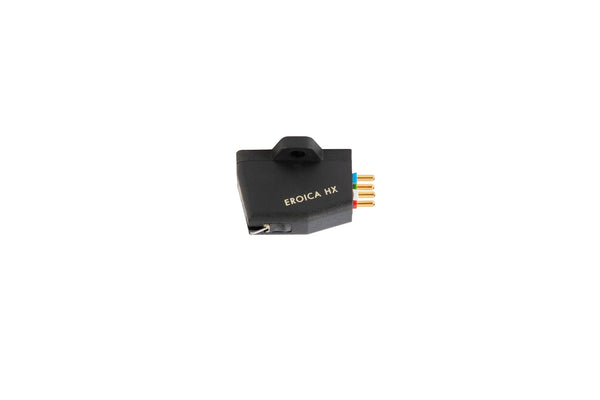

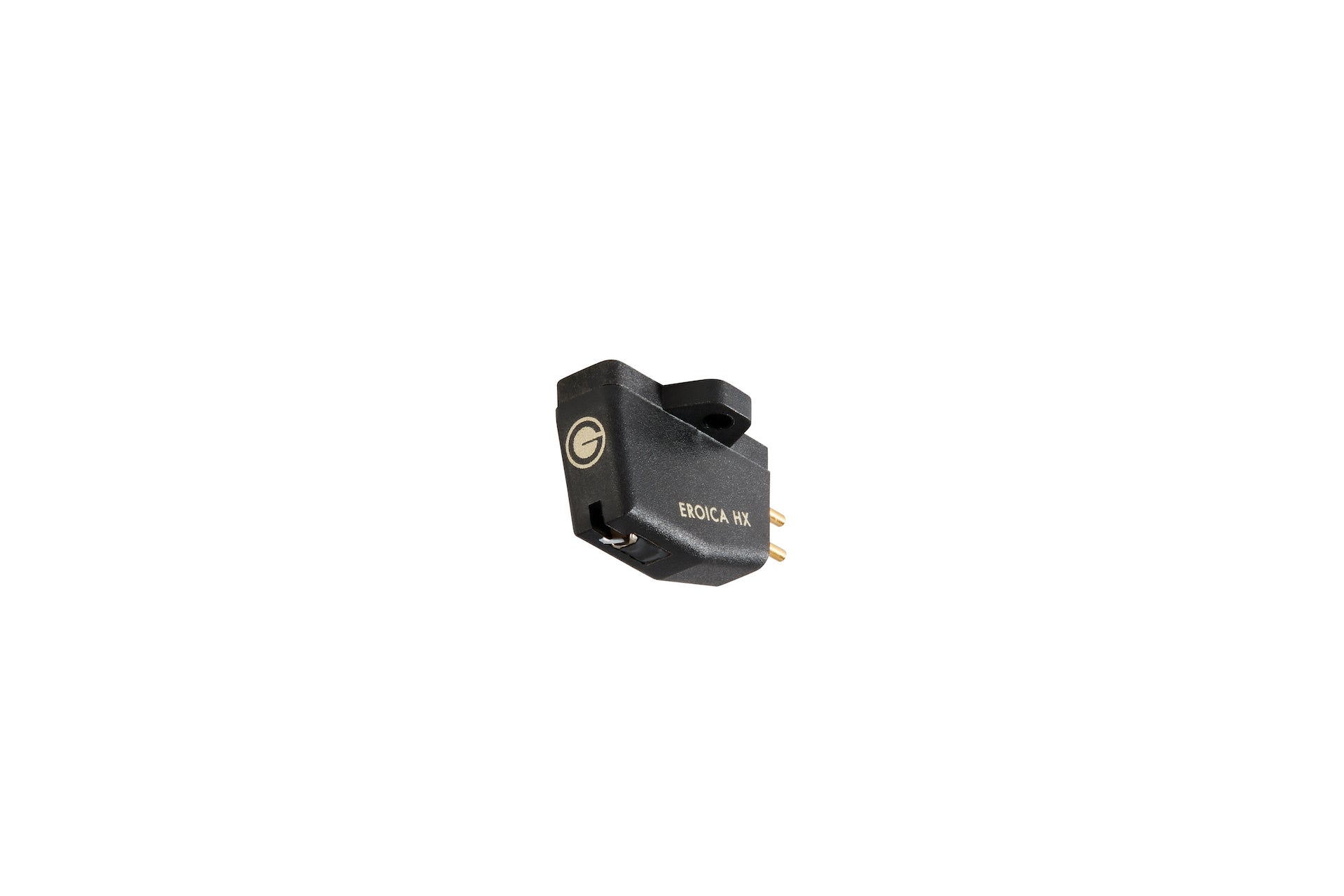

Goldring Eroica HX Moving Coil Cartridge

Regular price $899.00 $0.00 Unit price per
Shipping calculated at checkout.

Goldring Eroica HX - Now in Stock!

SRP $899

Overview

Goldring, introduces the latest member of its moving coil cartridge family, the Eroica HX. Joining the award-winning LX model in the Eroica range (‘Eroica’ translates as ‘Heroic’ in Italian), this high output, high-performance cartridge makes upgrading from a moving magnet cartridge to a moving-coil model straightforward. It achieves this by delivering a stunning moving coil performance from a moving magnet input and is one of the most obvious and cost-effective upgrades you can make to your vinyl audio system.

Features

Key features at a glance:

  • New, pure-iron cross-armature design for correct impedance matching
  • Ultra-fine, enameled-copper windings for higher output and low crosstalk
  • Equipped with Gyger II diamond stylus that can trace frequencies as high as 50kHz without distortion
  • Housing made from lightweight Pocan® composite material, chosen for its anti-coloration properties

Clear upgrade path to moving coil

The demanding nature of moving coil designs often prevents a clear upgrade path for vinyl enthusiasts. With the Eroica HX, turntable owners can enjoy the greatest gains in performance of an MC cartridge without the hassle of a system-wide upheaval – this cartridge delivers a stunning moving coil performance from a moving magnet input.

Easy installation

Arriving at a price comparable to that of a good moving magnet cartridge, Eroica HX is designed to work straight from the box, and to slot into your existing system with no fuss whatsoever. Simply install it in place of your old moving magnet cartridge, and enjoy improved dynamics, enhanced stereo imaging and controlled, distortion-free high frequencies immediately, with no additional equipment or any system adjustments required.

Works with moving magnet inputs

Eroica HX manages to combine thrillingly accomplished performance with unheard-of ease of use thanks to Goldring’s engineering know-how. By using numerous ultra-fine enameled-copper windings - so fine they literally float - Eroica HX has output sufficient to work with moving magnet phono inputs without compromising the low crosstalk that moving coil designs are prized for.

Pure-iron cross-armature design

By deploying a new pure-iron cross-armature, the copper windings have a permeable path for the parallel magnetic field in which to operate, resulting in greater output and correct impedance matching. In addition, the cross-shape design can separate left and right stereo channels far more effectively than the moving magnet alternative.

Gyger II diamond stylus

Eroica HX’s Gyger II diamond stylus has a tiny five micron playing radius, which means it can trace frequencies as high as 50kHz without distortion, and thanks to the cross-armature’s low mass it can react to musical transients with absolute precision.

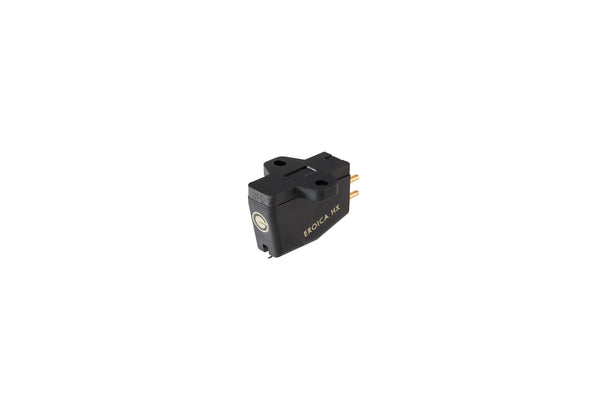

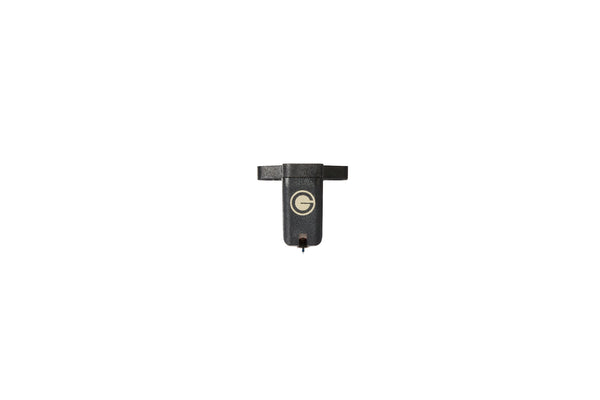

Light but rigid Pocan® housing

This is, unsurprisingly, a delicate mechanism. So Goldring has ensured it’s fully protected by enclosing it in a light, rigid and attractive housing formed from Pocan®. As well as the benefits of its light weight and stiffness, Pocan® has no input into the sound the cartridge makes.

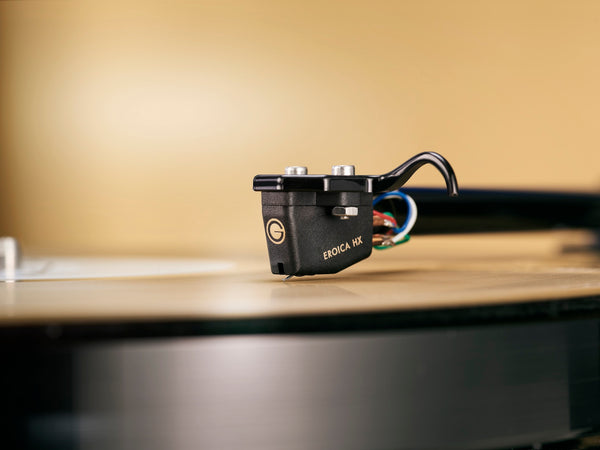

Compatible with all tonearm designs

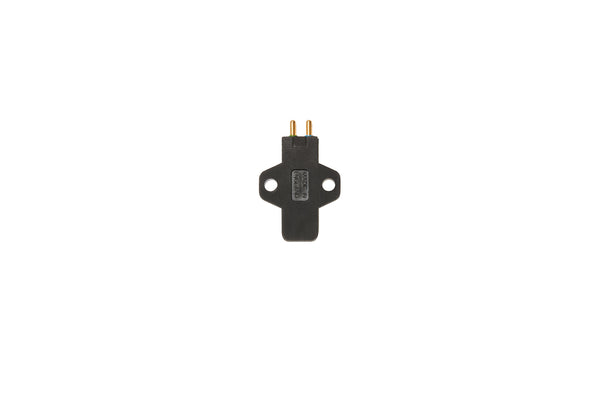

Eroica HX is compatible with virtually all tonearms, no matter if they’re straight, S-shaped or J-shaped, and no matter if they’re made from aluminum or carbon-fibre. Its standard size fitment means it can be mounted using standard fixings, from above or below the headshell.

Specifications

Frequency Response              20 Hz – 20 kHz ± 3 dB

Frequency Range                   10 Hz – 50 kHz

Channel Balance                     within 1 dB @ 1 kHz

Channel Separation               better than 25 dB @ 1 kHz

Sensitivity                               2.5 mV ± 1 dB, 1 kHz @ 5 cm/sec

Static Compliance                  25 mm/N

Trackability                             85 um (@ 315 Hz)

Equivalent tip mass                0.4 mg

Vertical Tracking Angle          22 °

Stylus Radius                          Gyger II

Stylus Type                             Non-Replaceable (re-tip service available see website)

Load Resistance                     47 kΩ

Load Capacitance                   100 – 500 pF

Internal Inductance                0.13 mH

Internal Resistance                35 Ω

Cartridge Mass                       5.2 g

Cartridge Mass (inc. fixings)  6.6 g

Fixing Centre                          0.5 " (12.7 mm)

Playing Weight                       1.5 - 2.0 g (1.75 g nom.)
